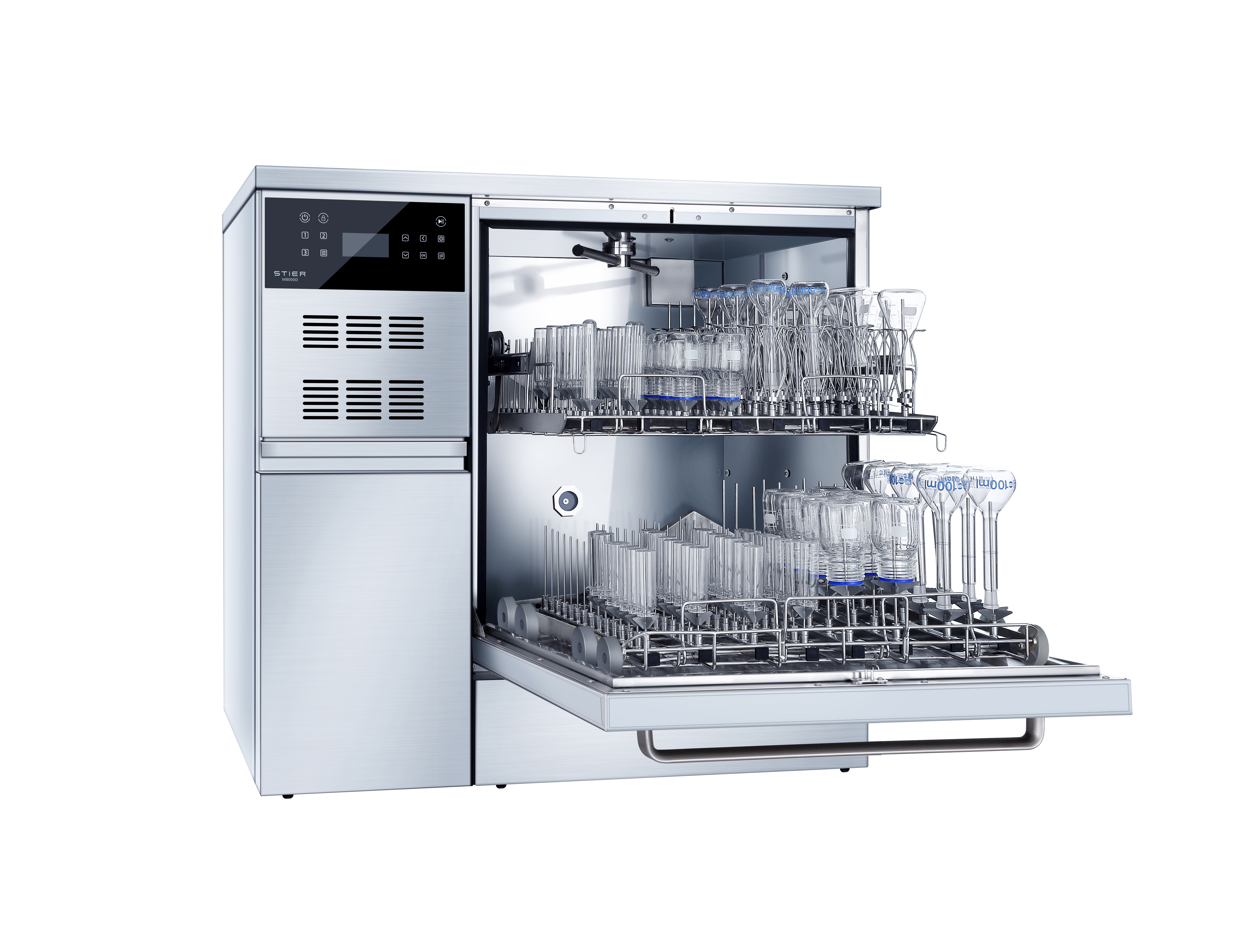

Primary Application: Automatic Laboratory Glassware Washers (e.g., S8000D Series)
Core Function: Specialized module for efficient washing and drying of diverse laboratory glassware within automated systems.
| Quantity: | |
|---|---|

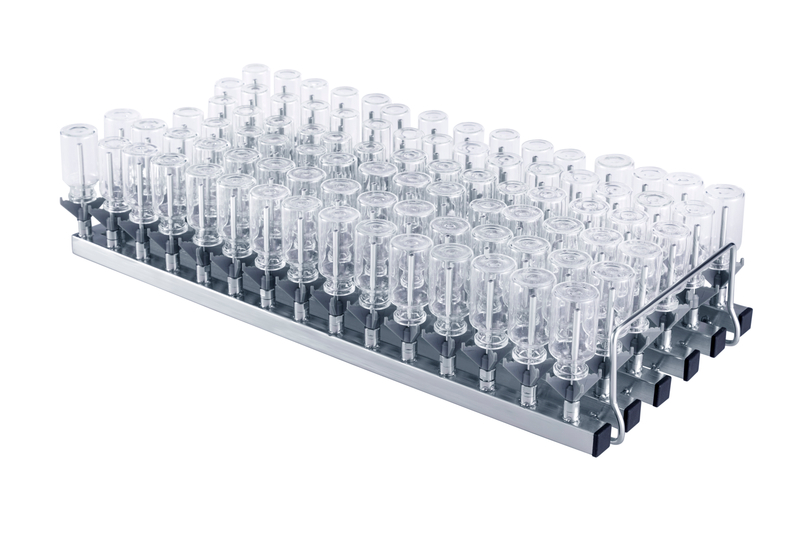

A615F 6×15 Module
STIER
Product Overview
The A615F Washer Module is a core component designed for integration into STIER's Rank A615 framework system, used within advanced laboratory glassware washers like the S8000D series. It enables the automated, thorough cleaning and drying of a wide variety of essential lab glassware, critical for maintaining contamination-free workflows in scientific environments.
Key Features
Model: A615F 6×15 Module (4*56 mm, limited POM crossed support)
Dimensions (H×W×D): 157 × 530 × 553 mm
Application: Sampler Vials, etc.
Nozzle Configuration: 88 Nozzles (N40056: Nozzle, D4 mm, H150 mm)
Support Configuration: 88 Supports (S40PCL:4.0 POM crossed limited support)
Technical Specifications & Compatible Modules
Model | A408B 4×8 Module (150mm) | 3L9 3×3 Module | L100 Lower Basket |
Dimensions (H×W×D) | 183 × 199 × 472 mm | 282 × 530 × 551 mm | 152 × 530 × 553 mm |
Ideal For | Volumetric Flasks, Measuring Cylinders, Tubes, etc. | 2-5L Schott Flasks, 1-5L Erlenmeyer Flasks, 2-5L Round Bottomed Flasks, 1-5L Measuring Cylinders, etc. | Holding up 1-2 wash modules or basket racks |
Nozzle Configuration | 32 Nozzles (N40150: Nozzle, D4 mm, H150 mm) | Nozzles included | / |
Support Configuration | 32 Supports (S40PC: 4.0 POM crossed support) | / | / |
Clamp Configuration | 32 Clamps (C40ST: 4.0 triangular clamp) | / | / |
P.S. | / | Lower Basket included | / |
Figure |  |  |  |
Please see Lab Glassware Washing Basket Module for more info.
STIER (Guangzhou) Instrument Co., Ltd.
Address: 207, Building 4, Qixi Creative Industrial Park, No. 24 Xinyi Road, Liwan District, Guangzhou, China
Telephone: +86-20-81579281
E-mail：info@stier-instrument.com
Website: www.stier-instrument.com
