Primary Application: Automatic Laboratory Glassware Washers (e.g., S8000D Series)
Core Function:Specialized basket frame designed to connect and load 2 lab washer modules or a basket rack on the upper layer of automatic laboratory glassware washers.
| Quantity: | |
|---|---|
U101 Upper Basket Frame (with Spray Arm)
STIER
Product Overview

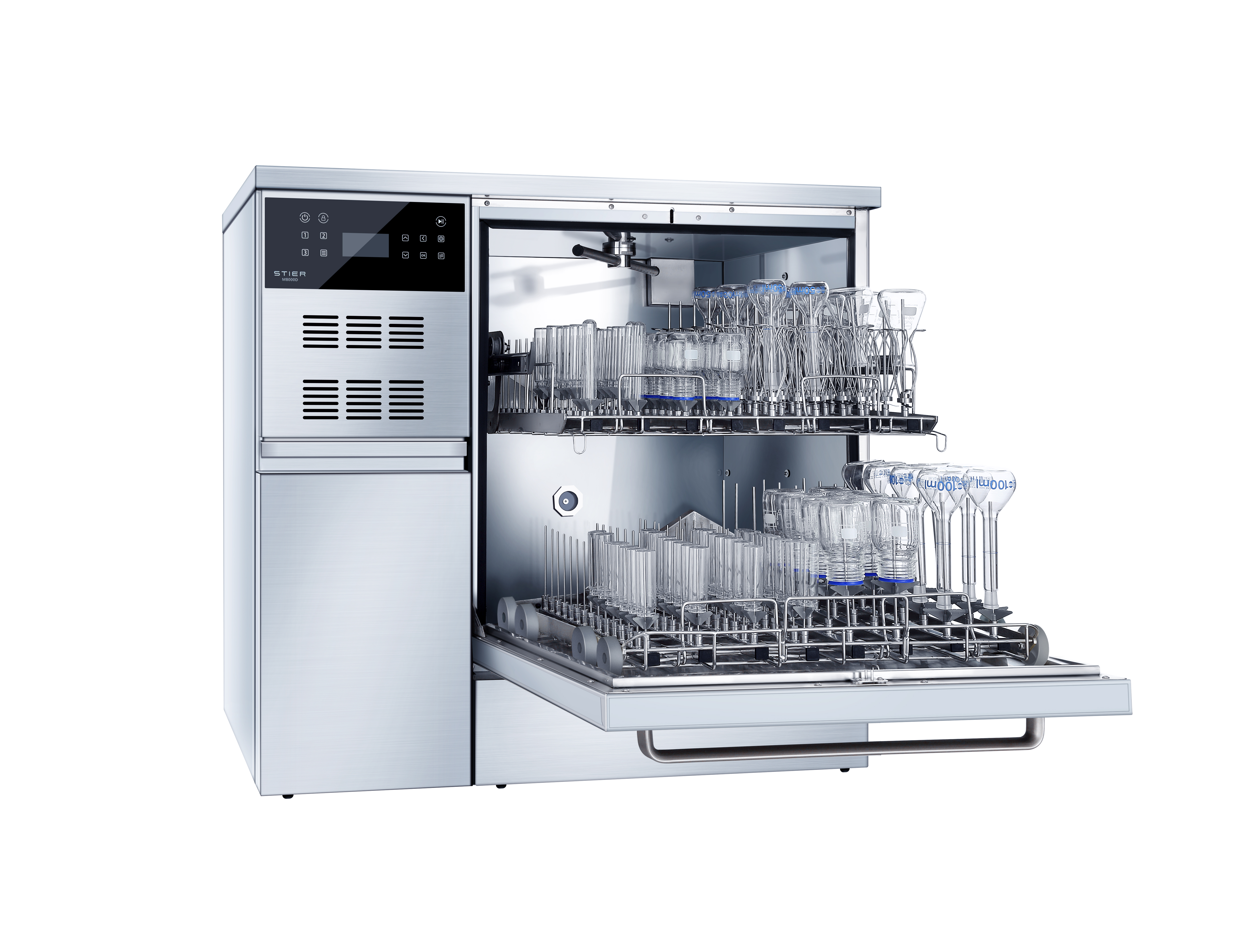

The U101 Upper Basket Frame (with Spray Arm) is a high-efficiency component designed for Automatic Laboratory Glassware Washers, such as S8000D Series. It enables loading of 2 wash modules or a single basket rack on the upper layer of the washer, optimizing lab workflow and space utilization.
Key Features
Technical Specifications & Compatible Modules

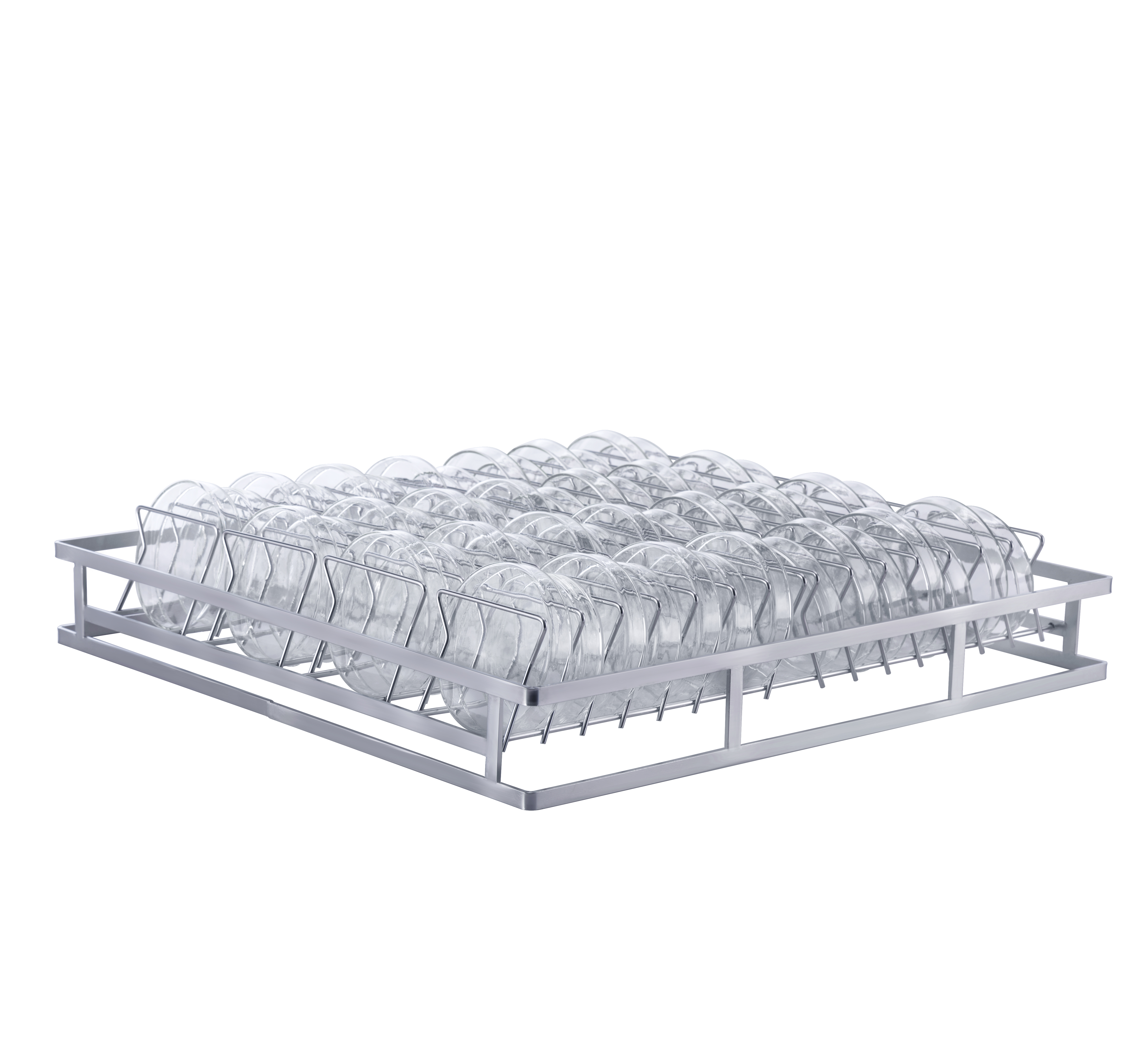

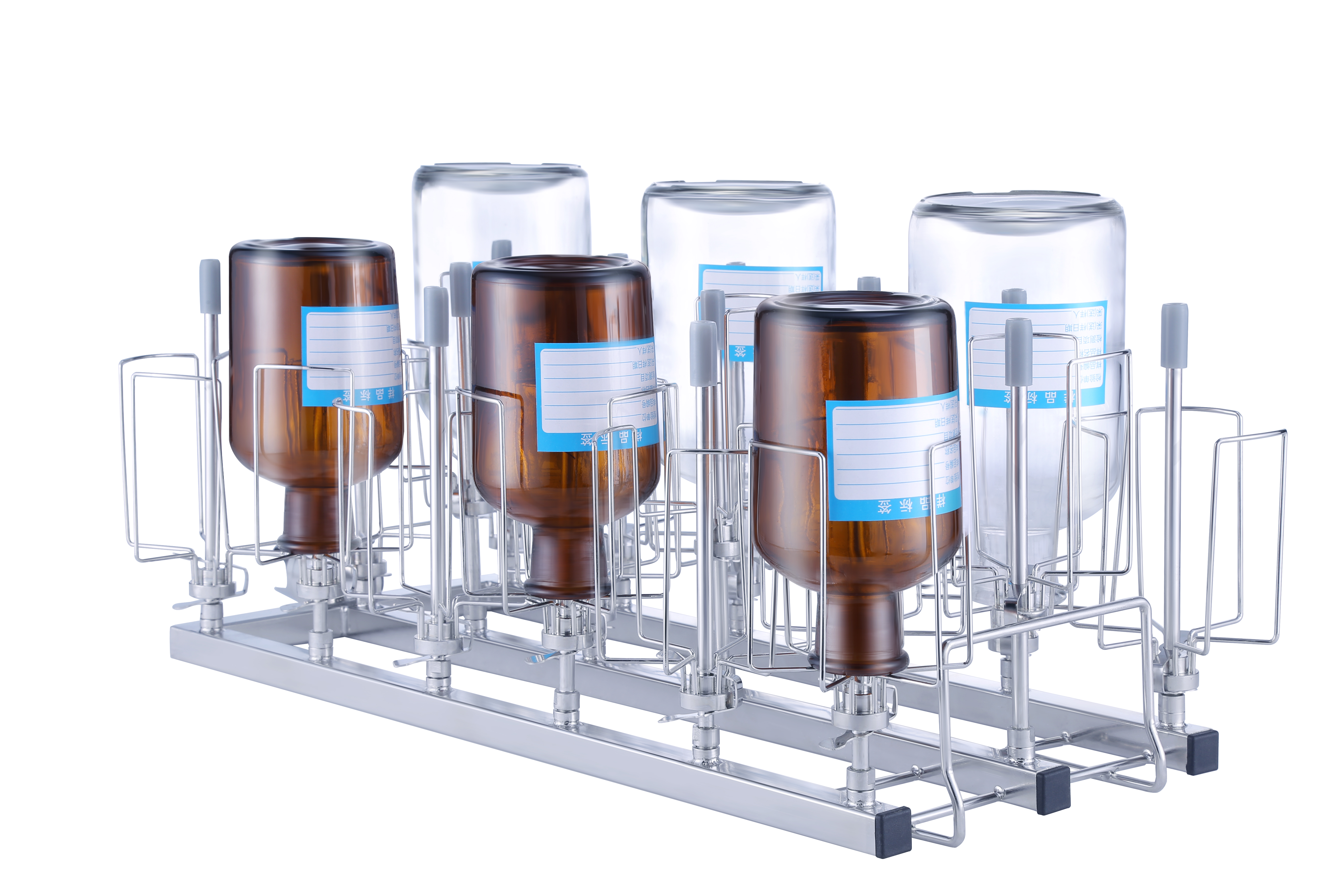

Model | A615E 6×15 Module (42mm) | A306E 3×6 Module (150 mm) | C56 Petri Dish Cleaning Basket Rack (56 Pieces) |
Dimensions (H×W×D) | 113 × 199 × 472 mm | 183 × 184 × 472 mm | 113 × 398 × 472 mm (Customizable) |
Ideal For | Sampler vials, etc. | Schott Flasks, Erlenmeyer Flasks, Round Bottomed Flasks, Volumetric Flasks, Measuring Cylinders, Test Tubes, etc. | Surface Dishes, Petri Culture Dishes (Ø90-110 mm), etc. |
Nozzle Configuration | 88 Nozzles (N25042: Nozzle, D2.5 mm, H45 mm) | 18 Nozzles (N60150: Nozzle, D6 mm, H150 mm) | / |
Support Configuration | 88 Supports (S25PC: 2.5 plastic crossed support) | 18 Holders (S60SSL: 6.0 stainless steel large square holder) | / |
Clamp Configuration | / | 18 Clamps (C60SL: 6.0 ladder clamp) | / |
Figure |  |  |  |
Please see Lab Glassware Washing Basket Module for more info.
